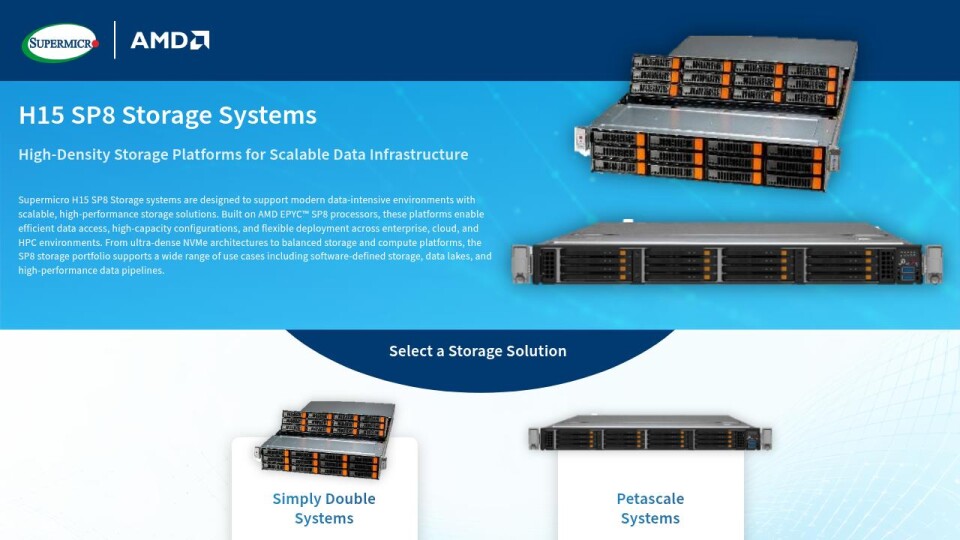

Supermicro H15 SP8 Storage systems are designed to support modern data-intensive environments with scalable, high-performance storage solutions. Built on AMD EPYC™ SP8 processors, these platforms enable efficient data access, high-capacity configurations, and flexible deployment across enterprise, cloud, and HPC environments. From ultra-dense NVMe architectures to balanced storage and compute platforms, the SP8 storage portfolio supports a wide range of use cases including software-defined storage, data lakes, and high-performance data pipelines.
Back to H15 SP8 Portfolio
Contact Supermicro
Select a Storage Solution
High-Density Storage Platforms for Scalable Data Infrastructure
H15 SP8 Storage Systems
Choose a storage platform designed to balance capacity, performance, and efficiency based on your data infrastructure needs.
Compact, high-performance NVMe storage platforms engineered for data-intensive workloads requiring efficient data access and high throughput.
Petascale
Systems
High-capacity storage platforms designed to maximize drive density and throughput within a 2U form factor, ideal for large-scale data environments and software-defined storage.
Simply Double
Systems
SP8 Storage Systems
Back to H15 SP8 Portfolio
Contact Supermicro
View Details

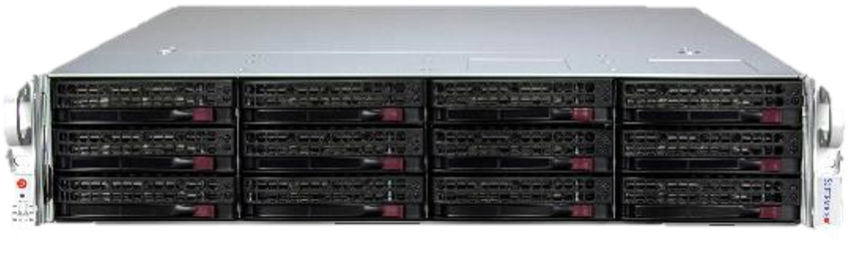

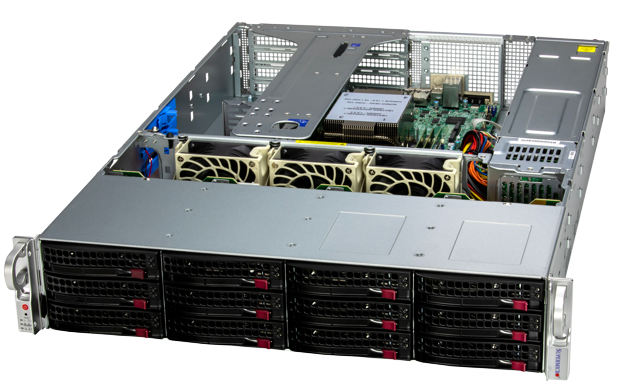

2U high-density storage system designed to maximize capacity and throughput for data-intensive environments
ASG-2017S8-E1CR24H/L
Featured Product Lines
Ideal for data lakes, analytics, and large-scale storage environments
Designed for Data-Intensive Workloads
Supports a range of NVMe and storage options
Flexible Drive Configurations
Combines efficient processing with high-capacity storage
Balanced Compute & Storage Performance
Supports scalable storage architectures and distributed data environments
Optimized for Software-Defined Storage
Maximizes capacity while maintaining efficient rack utilization
High-Density Storage in 2U Form Factor
Key Capabilities:
Up to 2x High-efficiency power supply (Titanium Level 96%) (1600W)
Power Supply
1x RJ45 Dedicated IPMI LAN port, 4x USB 3.0 ports, 1x VGA ports and 1x Serial port
Networking & I/O
24x Hot-swap 3.5" (SAS3/SATA3)2x Rear Hot-swap 2.5” SATA36x Optional rear E3.S NVMe2x Onboard M.2 NVME slots PCIe 3.0 (22x110mm)
Drive Bays
ASPEED AST2700, BIOS and RoT
System Management
Up to 4x PCI-E 6.0 x16 slots + 2x PCI-E 6.0 x8 slots
1x PCI-E 6.0 x16 AIOM slot
Expansion
16x DIMM slots (2DPC)
Memory
Single AMD EPYC™ SP8 processor
Processors
2U Rackmount
Form Factor
Featured System Specs:
Download Datasheet
Supermicro H15 SP8 2U Simply Double systems are designed to deliver high-capacity storage with efficient performance in a compact 2U form factor. Built on AMD EPYC™ SP8 processors, these platforms are optimized for environments that require large-scale data storage, high throughput, and reliable data access.With support for dense drive configurations and flexible system architecture, Simply Double systems enable organizations to consolidate storage infrastructure while maintaining performance across software-defined storage, data lakes, and enterprise storage environments.
Maximized Storage Density and Throughput
H15 SP8 Simply Double Systems
Placeholder
Open Image
SP8 Storage Systems
Back to H15 SP8 Portfolio
Contact Supermicro
View Details

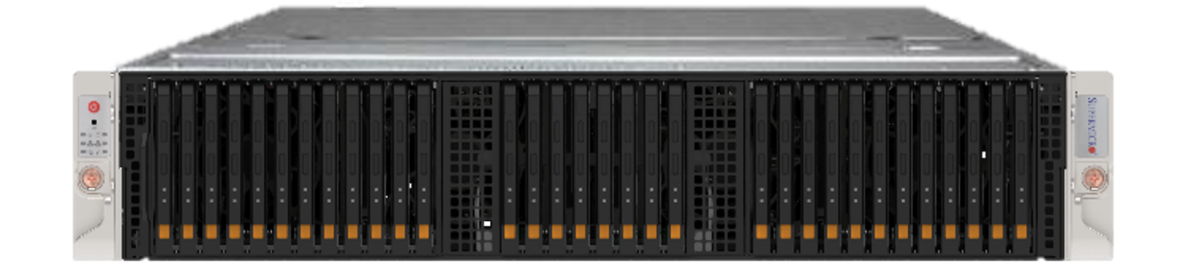

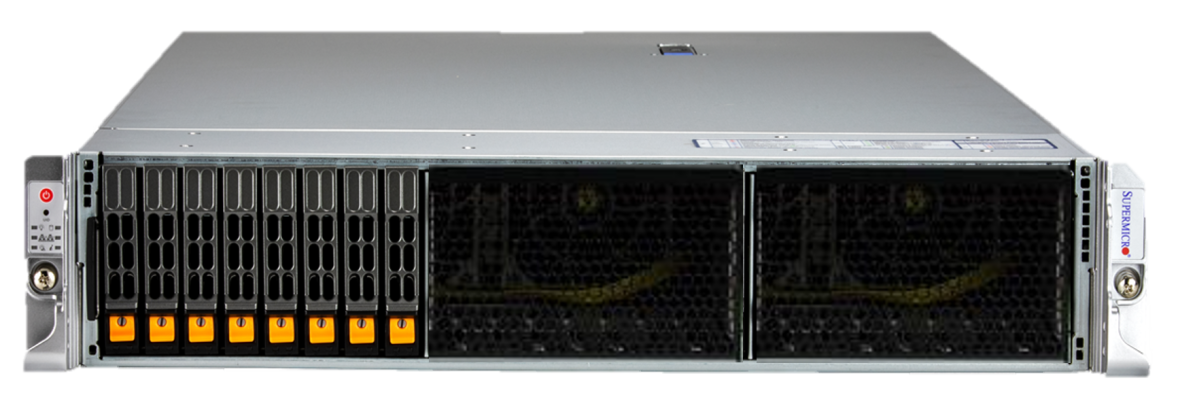

1U system with expanded NVMe capacity and throughput for demanding data-intensive workloads
ASG-2117S8-NE332R
View Details

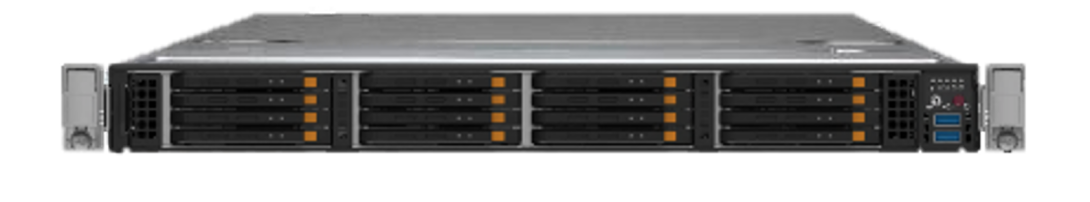

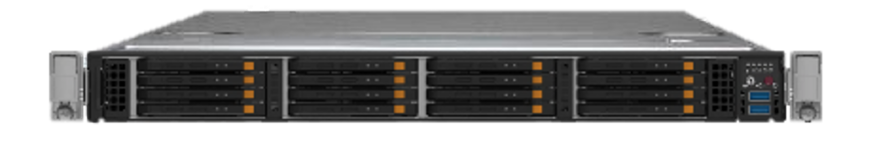

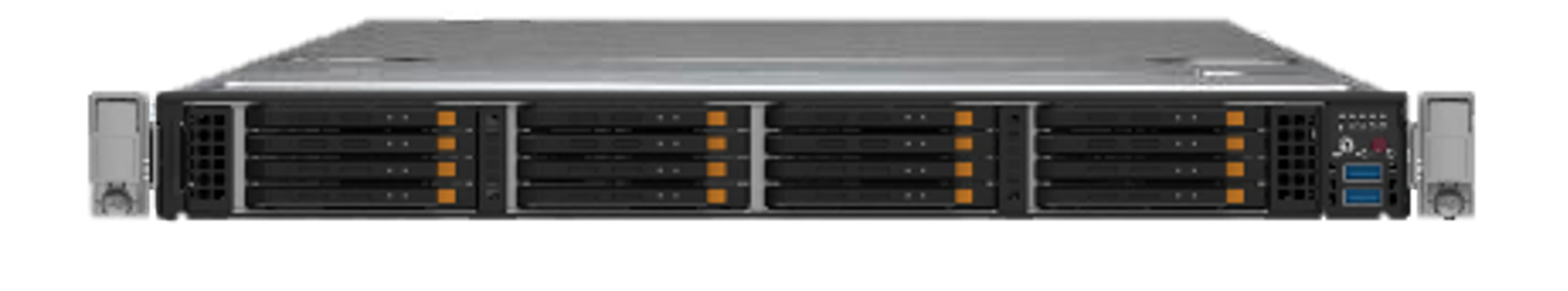

1U NVMe-optimized storage system designed for high-density, high-performance data environments
ASG-1117S8-NE316R
Featured Product Lines
Supports multiple storage and expansion configurations
Flexible Configuration Options
Enables dense deployments without increasing rack footprint
Efficient Storage Scaling
Supports modern NVMe architectures for low latency and high bandwidth
Ultra-Fast Data Access
Ideal for AI data pipelines, HPC, and analytics environments
Optimized for High-Throughput Workloads
Maximizes performance and capacity within a compact footprint
High-Density NVMe Storage
Key Capabilities:
Up to 2x High-efficiency power supply (Titanium Level 96%)
Power Supply
Dedicated IPMI LANFlexible networking via OCP 3.0 and PCIeUSB and VGA via DC-SCM
Networking & I/O
High-density NVMe (EDSFF) configurationsSupport for multiple hot-swap NVMe drives (E3.S / E3.L depending on model)
Drive Bays
ASPEED AST2700, BIOS and RoT
System Management
PCIe Gen5/Gen6 expansion support
OCP 3.0 (AIOM) for networking flexibility
Expansion
16x DIMM slots (2DPC)
Memory
Single AMD EPYC™ SP8 processor
Processors
1U Rackmount
Form Factor
Featured System Specs:
Download Datasheet
Supermicro H15 SP8 1U Petascale systems are engineered to deliver high-performance NVMe storage in a compact, space-efficient design. Built on AMD EPYC™ SP8 processors, these platforms are optimized for environments that require fast data access, high throughput, and efficient scaling across storage infrastructure.Designed for data-intensive workloads such as AI pipelines, high-performance computing (HPC), and large-scale analytics, Petascale systems enable organizations to deploy dense, high-speed storage while maintaining operational efficiency.
High-Performance NVMe Storage
H15 SP8 Petascale Systems
