Supermicro H15 SP7 Storage systems are designed for data-intensive environments that require high-capacity NVMe storage, efficient throughput, and integrated compute performance. Built on AMD EPYC™ SP7 processor technology, these Petascale platforms combine dense storage and server-class compute to support software-defined storage, NVMe-over-Fabrics, HPC, AI data pipelines, and large-scale analytics.
Back to H15 SP7 Portfolio
Explore Services
Select a Storage Platform
High-Density Compute and NVMe Storage for Data-Intensive Workloads
H15 SP7 Storage Systems
Built to handle massive datasets while maintaining performance, scalability, and operational efficiency.
High-density EDSFF NVMe storage platform designed for scalable capacity, performance, and throughput.
Petascale Storage
Systems
Systems
SP7 Storage Systems
Back to H15 SP7 Portfolio
Explore Services
View Details

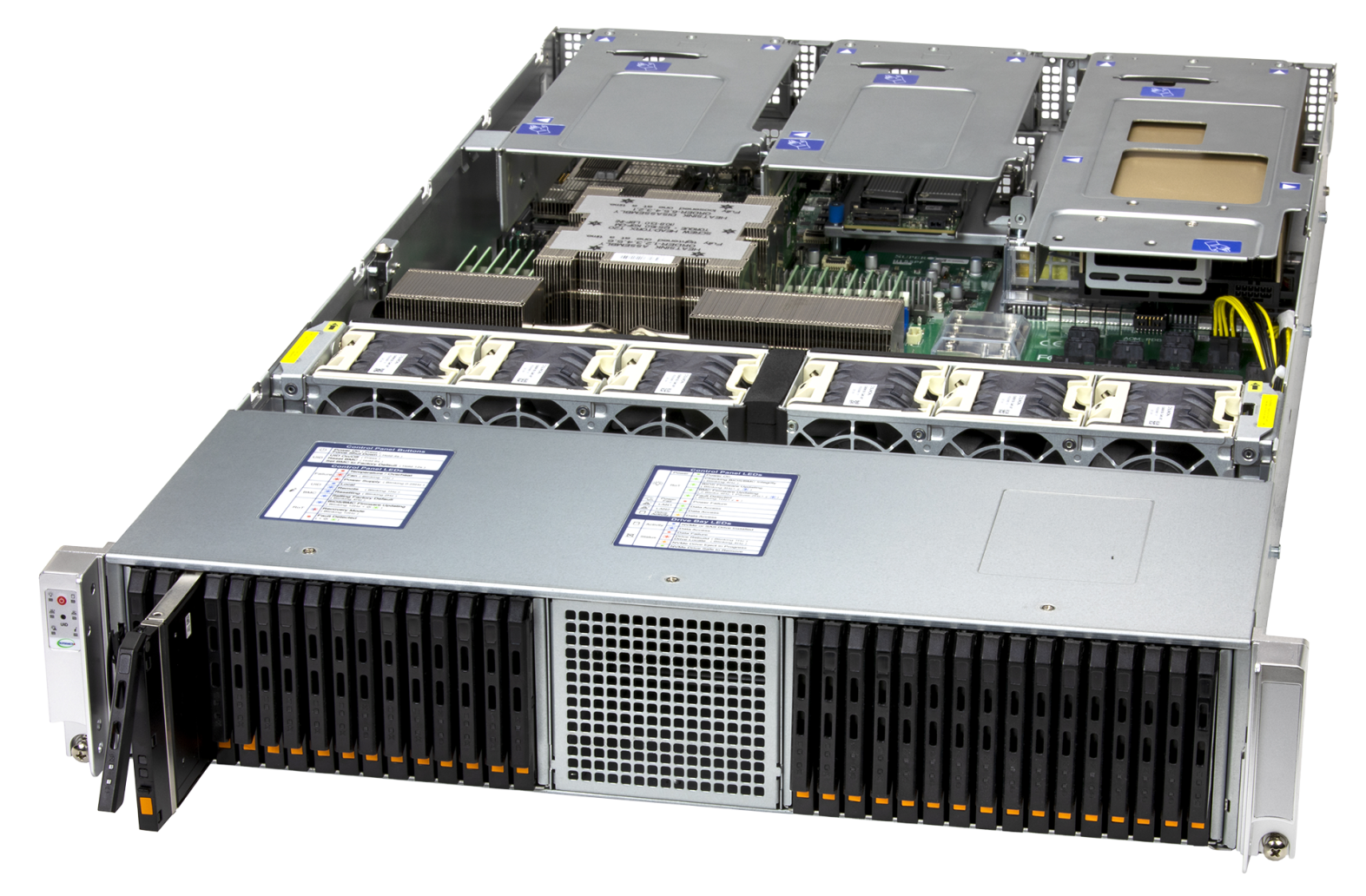

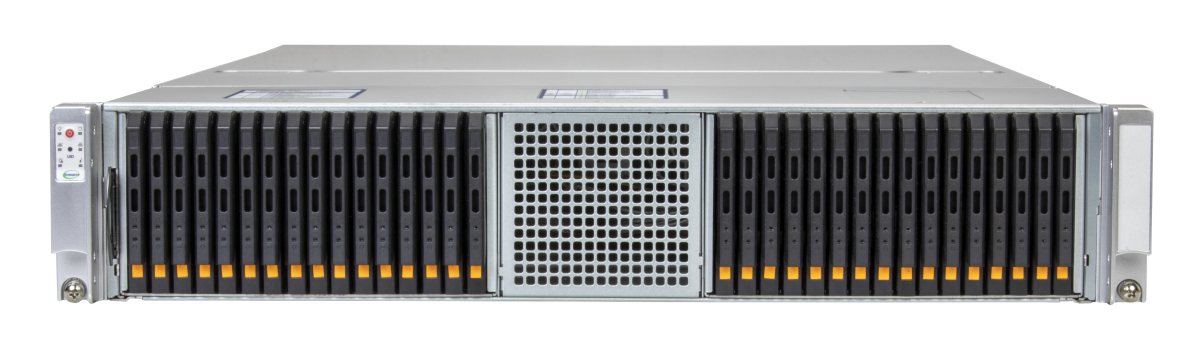

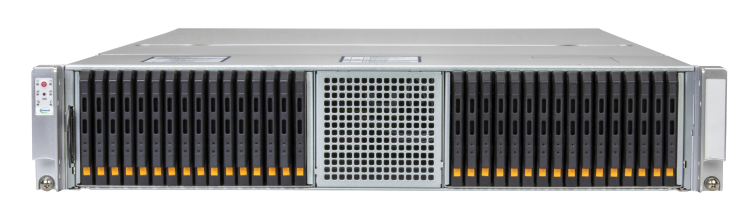

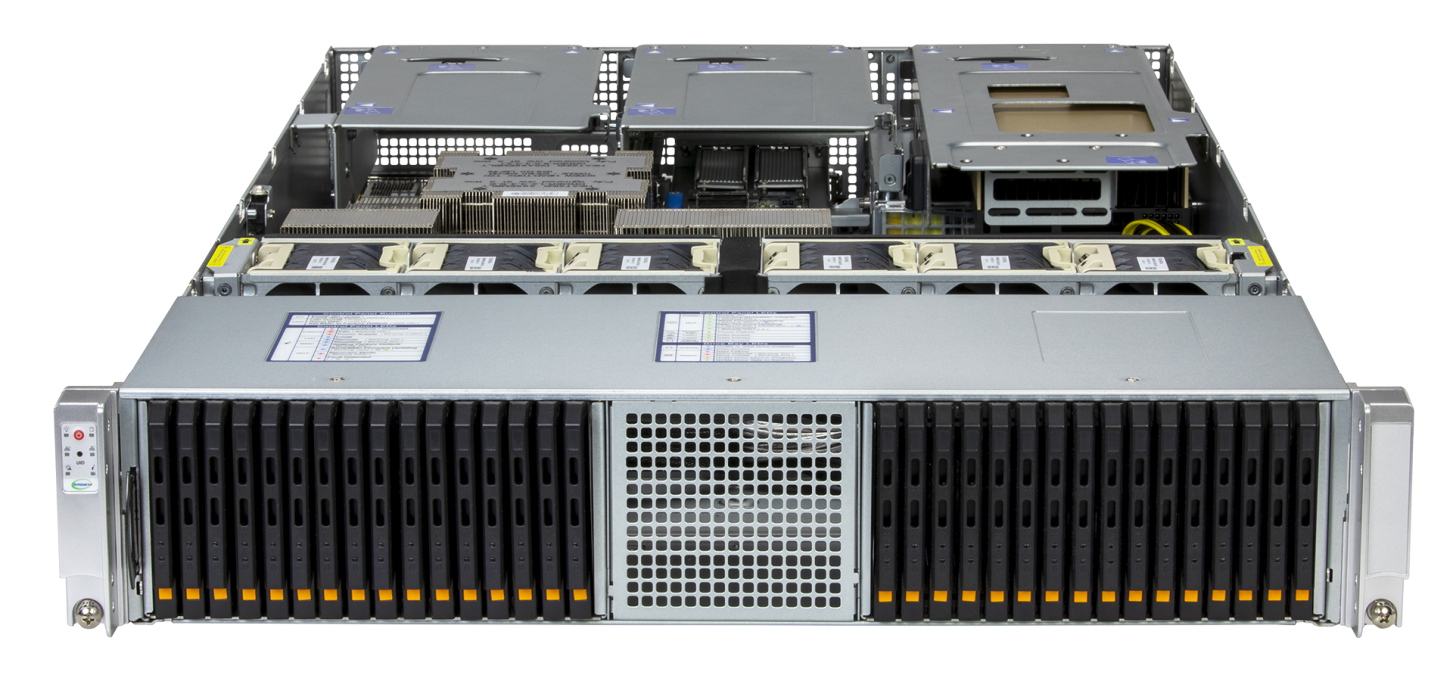

2U Petascale storage system with up to 32 hot-swap EDSFF E3.S / E3.L NVMe slots for high-capacity, data-intensive workloads.
ASG-2117S7-NE332R
Featured Product Lines
Balances storage capacity, performance, and power efficiency in a single-socket platform.
Efficient Single-Socket Design
Combines server-class compute with dense EDSFF NVMe storage in a 2U platform designed for data-intensive workloads.
High-Density 2U Storage Architecture
Supports next-generation I/O connectivity for high-throughput storage and networking.
PCIe 6.0 Expansion Architecture
Designed for HPC, AI data pipelines, analytics, and software-defined storage use cases.
Optimized for Data-Intensive Workloads
Supports dense E3.S / E3.L NVMe configurations for large-scale storage environments.
High-Density EDSFF NVMe Storage
Key Capabilities:
2700W Titanium-level redundant power supply
Power Supply

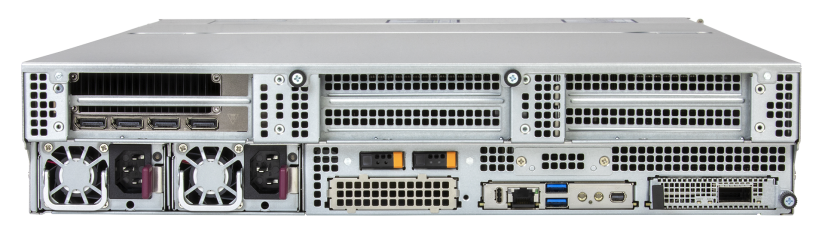

1x RJ45 dedicated IPMI LAN port from DC-SCM, 2x USB 3.0 ports, and 1x USB 2.0 port
Networking & I/O
Up to 32 hot-swap EDSFF E3.S / E3.L NVMe slots, plus hot-swappable M.2 NVMe support
Drive Bays
Built-in server management with IPMI 2.0, KVM/media over LAN, OpenBMC, and dedicated management LAN
System Management
Up to 3x PCIe 6.0 x16 depending on configuration, plus PCIe 6.0 x8 MCIO connectivity and PCIe 4.0 x4 DC-SCM
Expansion
16 DIMM slots, 1DPC ECC DDR5 designed for up to 8000MT/s
Memory
Single AMD EPYC™ 9006 Series SP7 processor, up to 600W TDP
Processors
2U rackmount Petascale system
Form Factor
Featured System Specs:
Supermicro H15 SP7 Petascale systems are designed for environments that demand dense NVMe storage, high-throughput data access, and integrated compute performance. Built on AMD EPYC™ SP7 processor technology, the 2U Petascale platform combines server-class compute with high-capacity EDSFF E3.S / E3.L NVMe storage to support software-defined storage, NVMe-over-Fabrics, AI data pipelines, HPC, and large-scale analytics.
High-Density Compute and NVMe Storage for Data-Intensive Workloads
H15 SP7 Petascale Systems
